RAZ AT Commode Chair

  • Height adjustable seat
  • Several seat options
  • Tilt-in-Space to 40°
  • 185kg weight limit

Description

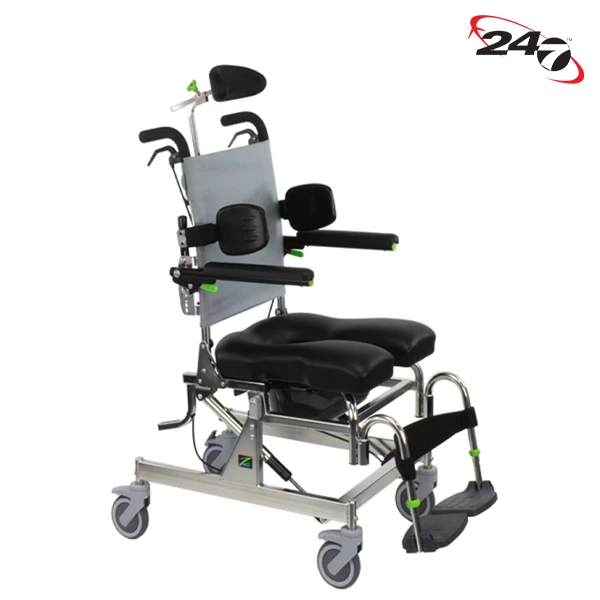

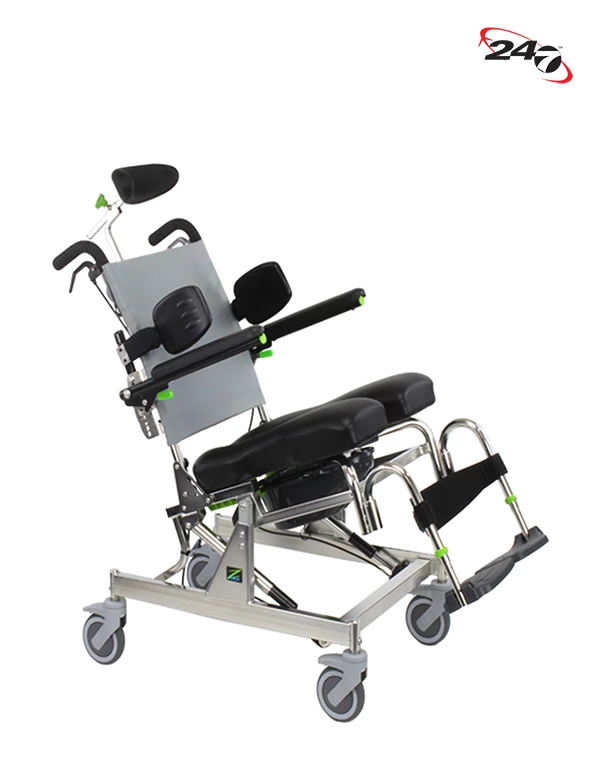

The RAZ-AT (Attendant Tilt) mobile shower commode chair tilts up to 40° to provide extra pressure reduction and comfort. The unique frame design utilises locking gas springs that help lift the seat to an upright position, making the RAZ-AT one of the easiest tilting mobile shower chairs to operate.

The RAZ AT Commode Chair with a range of seat heights, seat depths, armrest heights and backrest angle adjustments as standard which allows movement within the frame to best suit the patient and the environment. The use of IPAS (Ischial pelvic alignment system), allows the aperture to be aligned with a user’s pelvis and the contoured soft foam goes further in reducing pressure.

Seat Width Options: The standard width of the RAZ AT is 450mm (18”), but new for 2021 is a range of other widths available, all with the same 185kg / 29 stone weight capacity. By request you can now select from 400mm (16”), 500mm (20”), 590mm (22”) and 610mm (24”) in addition to the standard size.

Why should you use a shower chair?

Shower chairs are very beneficial if you are disabled and need help getting around and using the bathroom. Especially if you’re not steady on your feet, a slippy floor can be a nightmare. Shower chairs give you something to sit on to keep you safe and supported if you’re washing or using the toilet. Shower chairs also give you a chance to take care of yourself and maintain good hygiene. You can use the toilet, wash and shower with ease.

If independence is a concern, then you might choose a self-propelled shower chair if you are strong enough to push yourself around. Self-propelled shower chairs give you independence and the ability to move around your bathroom with no hassle. They’re also particularly versatile pieces of equipment because shower chairs can be doubled up as commodes. Many models have an aperture that allows for a removable commode pan to be fitted.

Bariatric commodes

There are numerous models of commodes which are explicitly designed for bariatric individuals. The term bariatric refers to severely overweight people to the extent that their day-to-day behaviour is inhibited.

Bariatric commodes are heavy-duty bedside commodes for larger individuals, supporting anywhere from 375 lb to as much as 1500 lb, depending on the model. In comparison, standard bedside commodes will generally support a person’s weight up to 300 – 350 lb, but you should always check, as some folding models will only support a maximum of 250lb. While not designed as a wheelchair, it does have small flip-down wheels, which enable it to be positioned as required before use.

Don’t hesitate to contact one of our team members to get a quote or advice.

Features

 Tilt Function

  • Seat frame tilts for extra pressure reduction and comfort
  • Locking pneumatic springs provide infinite adjustment up to 40°
  • Pressurized springs also help lift seat frame to an upright position
  • Conveniently located tilt triggers provide smooth tilt control
Moulded Seat

  • Contoured for pressure reduction and pelvic stability
  • Soft integral-skin foam for comfort and durability
  • Available with open or bridged front
  • Available sizes: 18″Wx16″D, 18″Wx19″D
Headrest (small, Standard)

  • headrest size is approximately 10” W x 4” H
  • integral skin foam headrest is easy to clean
  • headrest is shaped to cradle the head and can be adjusted to fit looser or tighter
  • headrest support can be adjusted infinitely forward and backwards within a 5½” range, and vertically within a 11½” range
  • headrest angle can be adjusted for comfort
  • headrest – small and mounting fixture are included with Raz-AT (Z300) and Raz-AT600 (Z360) chairs and optional on all other Raz models
Commode Pan

  • Injection-molded pan is designed for function
  • Includes a lid for splash and odor control
  • Wide handle angled at 45 degrees provides better ergonomics
  • Sloped front of pan moves contents toward the handle to reduce offset load, thereby making it easier to carry
  • Receiver brackets under seat are visible from the rear of the chair, making it easier to slide the pan into place
  • Fits in a standard autoclave and Arjo Tornado Washer
Tilt Assist Pedal

  • Helps attendant initiate tilt for heavier users or users with a forward weight distribution
  • enables attendant to use additional strength from legs to tilt larger/heavier users
  • solid stainless steel construction fits directly into chair frame
  • anti-slip tread on pedal
 Fixed Back

  • includes adjustable tension fabric back upholstery
  • includes flip-up, angle-adjustable arms
  • available in 17” and 20” back heights
  • locking armrest upgrade available [Z710]

Adjustments

Adjustable Footrests

  • removable for transfers and cleaning
  • swing in and out easily
  • flip-up footplate
  • adjust for leg length without tools
  • available in regular length 16″-20½” and extended length 18″-22½”
Adjustable Tension Fabric Back

  • Vinyl-coated fabric for durability, comfort and better infection control
  • Provides individualized trunk support for optimal positioning and comfort
  • Removable for machine washing
  • Available in 17”, 20”, and 24” back heights
Adjustable Pivot Posts

  • provides 4” of seat height adjustment without fra
