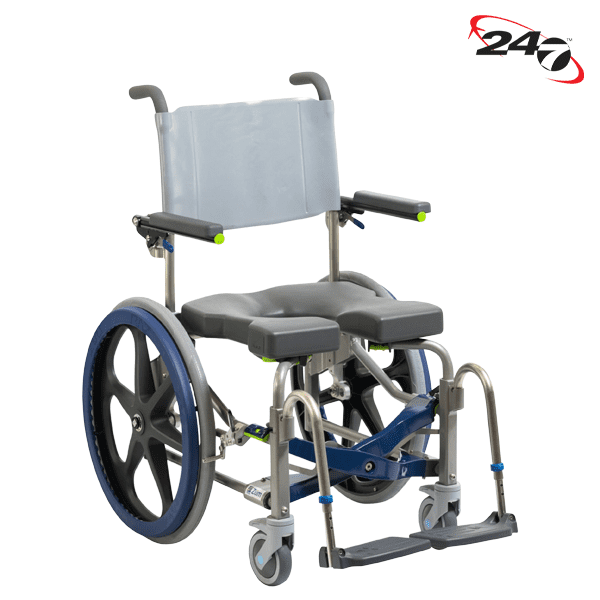

RAZ ZUM-AP/SP Commode Chair

  • 2 version available
  • Cross-brace design
  • Lock-down system
  • Unrestricted access

Description

The RAZ ZUM-AP/SP are the first folding frame mobile shower commode chairs that offer the rigidity that you would expect from a premium product. The unique cross-brace design allows the RAZ ZUM-AP/SP to fitfully over a toilet for the optimal alignment of the aperture with the toilet bowl. Standard features include:

  • Crossbrace with low pivot point and forward arch allows ZUM to be positioned fully over the toilet
  • Crossbrace lock-down system and rear seat support tube provide unparalleled rigidity
  • 18” W aluminium frame – fits over most standard toilets
  • Unrestricted front and side access
  • 17 standard seats + custom (with IPAS)
  • Removable back support
  • Flip-up arm supports with optional lock kit
  • 22” or 24” wheels available for the ZUM-SP model
  • 2” fore/aft rear wheel adjustment (fine tunes centre-of-mass position for SP model)
  • Quick-Release Axles are standard
  • BYOW (Bring Your Own Wheels) custom axle receivers allow the use of the client’s own wheelchair wheels

Only RAZ offers the Ischial & Pelvic Alignment System (IPAS), which allows the commode seat aperture to be comfortably centred around the ischial tuberosities for clients with a posterior or anterior rotated pelvis. With so many adjustments and options available, the Züm is a true prescriber-friendly, folding frame mobile shower chair.

Why should you use a shower chair?

Shower chairs are very beneficial if you are disabled and need help getting around and using the bathroom. Especially if you’re not steady on your feet, a slippy floor can be a nightmare. Shower chairs give you something to sit on to keep you safe and supported if you’re washing or using the toilet.

Shower chairs also give you a chance to take care of yourself and maintain good hygiene. You can use the toilet, wash and shower with ease. If independence is a concern, then you might choose a self-propelled shower chair if you are strong enough to push yourself around. Self-propelled shower chairs give you independence and the ability to move around your bathroom with no hassle. They’re also particularly versatile pieces of equipment because shower chairs can be doubled up as commodes. Many models have an aperture which allows for a removable commode pan to be fitted.

Don’t hesitate to contact one of our team members to get a quote or advice.

Features

Contoured for pressure reduction and pelvic stability

  • Soft integral-skin foam for comfort and durability
  • Available with open or bridged front
  • Available sizes: 18″Wx16″D, 18″Wx19″D

Ischial Pelvic Alignment System

  • Provides 2” of fore/aft adjustment so the seat can be aligned with the pelvis
  • Allows centering of the aperture (opening) around the users’ ITs
  • Seat locks in place for transfers
  • Removes easily for cleaning
  • Optional spacers for anterior or posterior seat angle adjustment [Z491]

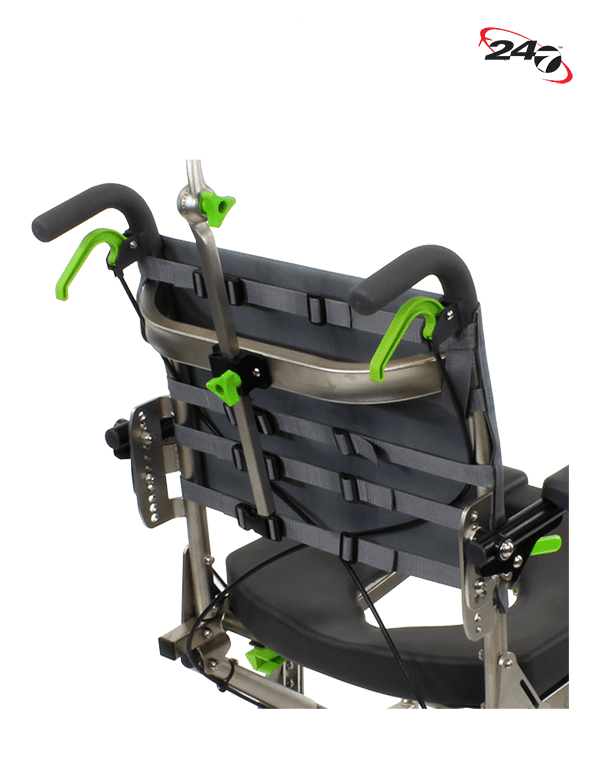

Fixed Back

  • Includes adjustable tension fabric back upholstery
  • Provides flip-up angle adjustable armrests
  • Available in 17″ and 20″ back heights
  • Locking armrest upgrade available [Z710]
  • Adjustable Footrests
  • Removable for transfers and cleaning
  • Swing in and out easily
  • Flip-up footplate
  • Adjust for leg length without tools
  • Available in regular length 16″-20½” and extended length 18″-22½.”

Tension-Adjustable Back Support Fabric

  • Polyester fabric for durability and comfort against the skin
  • Provides individualized trunk support for optimal positioning and comfort
  • Removable for machine washing
  • Available in 17″ and 20″ back heights

Telescoping Caster Extensions

  • Provide 4″ of seat height adjustment without the use of tools
  • Dropped front frame tube improves access over standard toilet bowls

Multi-Position Axle Plates

  • Provide up to 4″ of vertical seat height and 1.5″ of horizontal adjustment for optimum user/toilet bowl access
  • Allow use of 22″ or optional 24″ rear wheels

Commode Pan

  • Injection-moulded pan is designed for function
  • Includes a lid for splash and odour control
  • A wide handle angled at 45 degrees provides better ergonomics
  • Sloped front of pan moves contents toward the handle to reduce offset load, thereby making it easier to carry
  • Receiver brackets under the seat are visible from the rear of the chair, making it easier to slide the pan into place
