NXT Optima Wheelchair Backrest Range

The NXT Optima and Optima DEEP Thoracic Back Support was specifically designed for optimal pelvic positioning while providing proper support to the users thoracic region.

The Optima offers a very large range of width and height choices to accommodate a large range of users, from the very active to less active – and body types from very small to bariatric.

Description

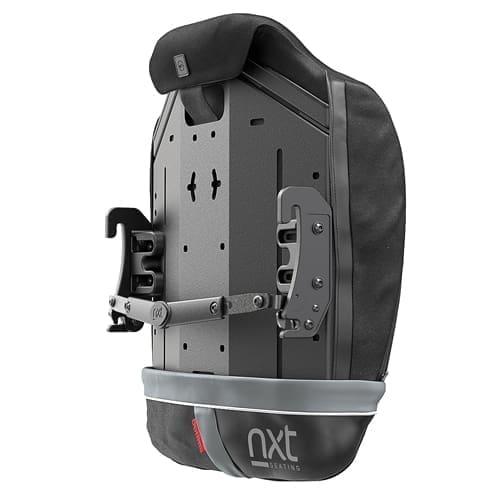

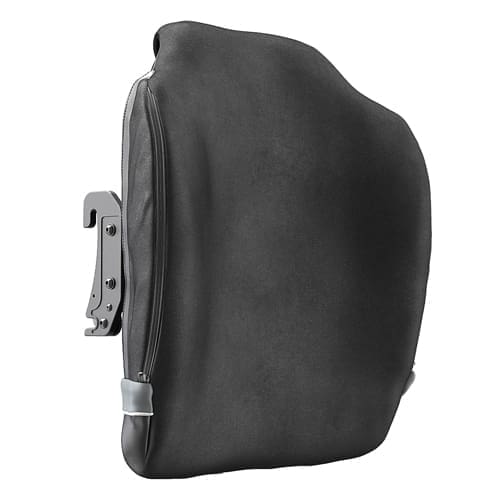

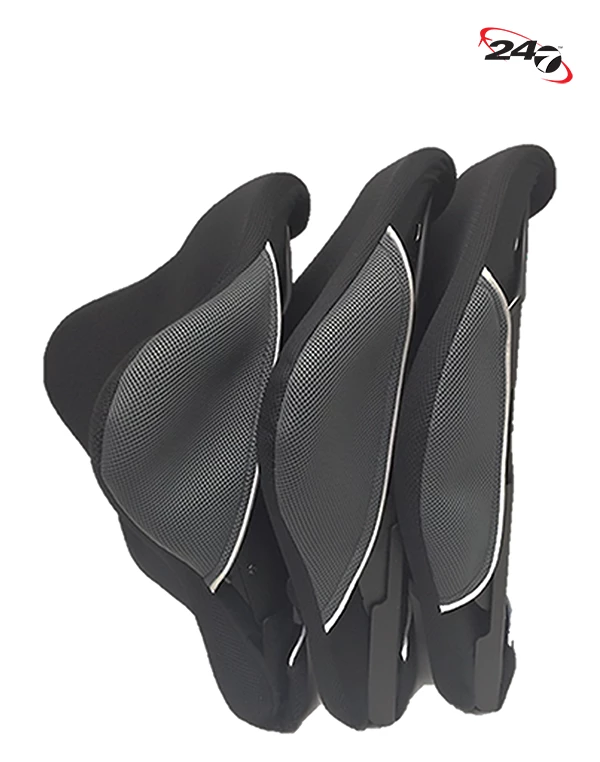

The NXT Optima HA PC back support series offers a range of contours to provide posterior, posterior-lateral and posterior deep lateral support.

The Scapula cut-out shape is designed to provide excellent support and comfort while enhancing the user’s natural range of motion. For optimal positioning of the pelvis, pelvic-lumbar support pads can be uniquely positioned to customise the fit for the user. In addition, the wide range of sizes and contours provide exceptional support and comfort.

The fixed height pelvic, plus contour back support has a depth adjustable deep pelvic contour of 5.5″- 7″ / 14- 18cm. Fits 1″, ⅞” or ¾” / 2.5cm, 2.2cm, 1.9cm, cane diameters without shims.

Removable Quickfit mounting hardware has height adjustment, 5″ / 13cm of depth, 25 degrees of posterior / anterior angle adjustment and even rotation. Weight capacity 16″-20″, 300lbs / 136kg. 22″, 400lbs / 182kg.

FEATURES:

  • Scapula cut-out shape for advanced freedom of movement
  • Optima is available in a Standard and Deep lateral contour depth.
  • The Deep offers an adjustable depth of 5.5 in. to 7 in. (14 cm to 17.8 cm) for optimal mid-line support and positioning
  • Lightweight aluminun shell
  • Higher lateral contours, providing
  • Better support in the thoracic region
  • While maintaining optimal pelvic positioning

WHAT’S INCLUDED:

  • One-piece lightweight aluminum shell
  • Depth adjustable lateral contours (DEEP Only)
  • Dual-density foam back cushion with smartGEL Infused Visco Technology –reduces surface temperature, drawing heat away from the skin providing superior comfort and softness.
  • smartx3D antimicrobial polyester 4-way stretch cover (washable)
  • QuickFit Mounting System –Installation Hardware
  • One-Hand Quick Release

ACCESSORIES & OPTIONS:

  • Head supports
  • Laterals
  • Replacement cover and foam
  • Regular and DEEP contour options

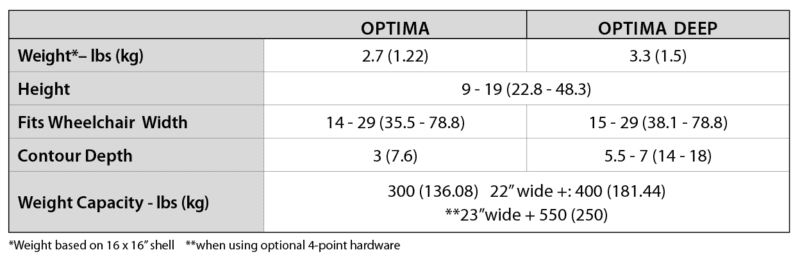

OPTIMA BACK SUPPORT SPECIFICATIONS – INCH (CM)

Optima Wheelchair backrest specifications

OPTIMA BACK SUPPORT SPECIFICATIONS

Preventing pressure ulcers

It can be difficult to completely prevent pressure ulcers, but there are some things you or your care team can do to reduce the risk.

These include:

  • Regularly changing your position – if you’re unable to change position yourself, a relative or carer will need to help you
  • Checking your skin every day for early signs and symptoms of pressure ulcers – this will be done by your care team if you’re in a hospital or care home
  • Have a healthy, balanced diet that contains enough protein and a good variety of vitamins and minerals – if you’re concerned about your diet or caring for someone whose diet may be poor, ask your GP or healthcare team for a referral to a dietitian
  • Stopping smoking – smoking makes you more likely to get pressure ulcers because of the damage caused to blood circulation

If you’re in a hospital or care home, your healthcare team should be aware of the risk of developing pressure ulcers. They should carry out a risk assessment, monitor your skin and use preventative measures, such as regular repositioning.

Don’t hesitate to contact one of our team members to get a quote or advice.

Sizes

  • NPCB1616 – Optima FHP PC Back – Fits Width: 16″, 17″, 18″ / 40, 43, 45cm
  • NPCB1618 – Optima FHP PC Back – Fits Width: 16″, 17″, 18″ / 40, 43, 45cm
  • NPCB1620 – Optima FHP PC Back – Fits Width: 16″, 17″, 18″ / 40, 43, 45cm
  • NPCB1816 – Optima FHP PC Back – Fits Width: 18″, 19″, 20″ / 45, 48, 50cm
  • NPCB1818 – Optima FHP PC Back – Fits Width: 18″, 19″, 20″ / 45, 48, 50cm
  • NPCB1820 – Optima FHP PC Back – Fits Width: 18″, 19″, 20″ / 45, 48, 50cm
  • NPCB2016 – Optima FHP PC Back – Fits Width: 20″, 21″, 22″ / 50, 53, 55cm
  • NPCB2018 – Optima FHP PC Back – Fits Width: 20″, 21″, 22″ / 50, 53, 55cm
  • NPCB2020 – Optima FHP PC Back – Fits Width: 20″, 21″, 22″ / 50, 53, 55cm
  • NPCB2216 – Optima FHP PC Back – Fits Width: 22″, 23″, 24″ / 55, 58, 60cm
  • NPCB2218 – Optima FHP PC Back – Fits Width: 22″, 23″, 24″ / 55, 58, 60cm
  • NPCB2220 – Optima FHP PC Back – Fits Width: 22″, 23″, 24″ / 55, 58, 60cm

Replacement covers

  • NPCC1616 – Replacement Cover / Foam For NPCB1616
  • NPCC1618 – Replacement Cover / Foam For NPCB1618
  • NPCC1620 – Replacement Cover / Foam For NPCB1620
  • NPCC1816 – Replacement Cover / Foam For NPCB1816
  • NPCC1818 – Replacement Cover / Foam For NPCB1818
  • NPCC1820 – Replacement Cover / Foam For NPCB1820
  • NPCC2016 – Replacement Cover / Foam For NPCB2016
  • NPCC2018 – Replacement Cover / Foam For NPCB2018
  • NPCC2020 – Replacement Cover / Foam For NPCB2020
  • NPCC2216 – Replacement Cover / Foam For NPCB2216
  • NPCC2218 – Replacement Cover / Foam For NPCB2218
  • NPCC2220 – Replacement Cover / Foam For NPCB2220

Specifications

Product Weight: 3.2lbs / 1.5kg – 16″x16″ / 40cm X 40cm back shell
Back Height: 16″-18″-20″ / 40, 45, 50cm
Back Width: 16″-18″-20″-22″ / 40, 45, 50, 55cm
A – Inner: 13″-15″-17″-19″ / 33, 38, 43, 48cm
B – Outer: 16″-18″-20″-22″ / 40, 45, 50, 55cm
C – Contour: Adjustable 5.5″-7″ / 14, 18cm
