Pollux Freestanding Lift Stand

  • Easy height setting
  • Discreet and compact design
  • Weight capacity of 600kg
  • Easy to assemble and disassemble

Description

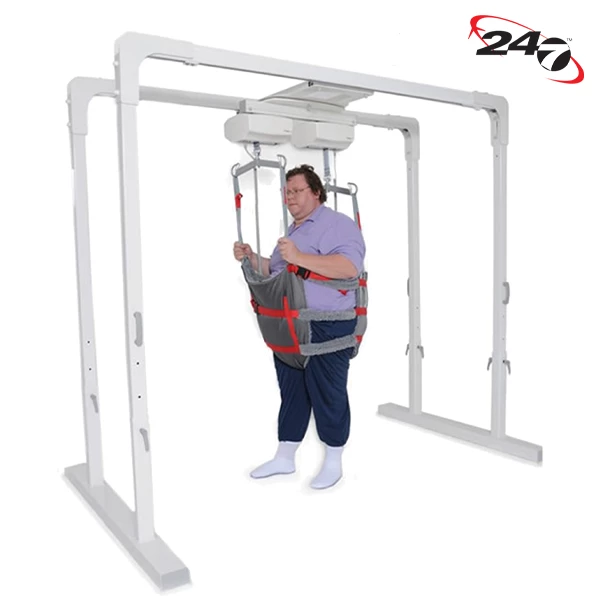

Pollux is a safe, high-performance, and portable freestanding lift stand that, combined with two rails and two ceiling lift units, functions as a stationary lift system for bariatric users.

With Pollux, you can create many safe and flexible lifting solutions that are ideally adapted for all settings and bariatric users.

The rails are ordered separately, allowing you to choose the rail length and thereby optimally adapt the lift stand’s width and the lifting area to meet lifting needs in different settings. With the locking handles on the uprights, the height can easily be set at seven different positions to adapt the lift stand’s height and the lifting range according to the specific situation and lifting needs. It is also possible to perform both low and very high lifts with the same lift stand.

Gantry hoists

A gantry hoist is a ceiling track hoist. The only difference is that the cassette (hoist unit) is mounted on a portable frame with legs rather than fixed to a ceiling. Gantries are ideal if you only need the system for a short time. For example, sometimes, we fit a gantry system as a temporary measure before we fit a ceiling track hoist or for clients who do not want any holes drilled into their ceiling or walls.

Don’t hesitate to contact one of our team members to get a quote or advice on a hoist.

Features

  • Compact and discreet design
  • Very stable construction
  • Extremely strong, for users weighing up to 600 kg/1320 lbs
  • Aluminium for low weight
  • Easy to assemble and disassemble, with the locking handles available as an accessory, no tools are needed
  • Easy to move and store
  • Rails available in different lengths
  • Easy setting of height, 7 positions with 7.5 cm/2.95″ distance
  • Flexible width (lifting area) and height (lifting range)
  • For use with different types of ceiling lift units
  • Safe and flexible lifting solutions for all settings and bariatric users
  • Ceiling lift units and many lifting accessories are available in the SystemRoMedic™ Lifting range

360 Turning

BariTurn – a 360° turning trolley for two ceiling lift units

BariTurn, which is available as an accessory, can be used with Pollux for the lifting of bariatric users, for example in connection with seated or horizontal transfers. BariTurn is also a perfect assistive device for standing training and gait training with extremely large and heavy users. BariTurn has a safe working load of 500 kg/1100 lbs.

Components

Item No. Product
50300005 Pollux, freestanding lift stand, aluminium, white, without rails
50400123 Rail 64-2 W, 2 m / 78”, 1 pce, 2 pcs must be ordered separately
50400157 Rail 64-3 W, 3 m / 118”, 1 pce, 2 pcs must be ordered separately
50400130 Rail 120-4 W, 4 m / 157”, 1 pce, 2 pcs must be ordered separately
50400131

Rail 120-5 W, 5 m / 196”, 1 pce, 2 pcs must be ordered separately

Accessories
50300006 Locking handles, quick release, 4 pcs, 8 pcs are needed for the two rails
50400180

BariTurn, 360° turning trolley for two ceiling lift units

Technical information )* Depending on rail length
Safe working load: 600 kg / 1320 lbs
Weight, total: 65.6 kg / 144.6 lbs without rails

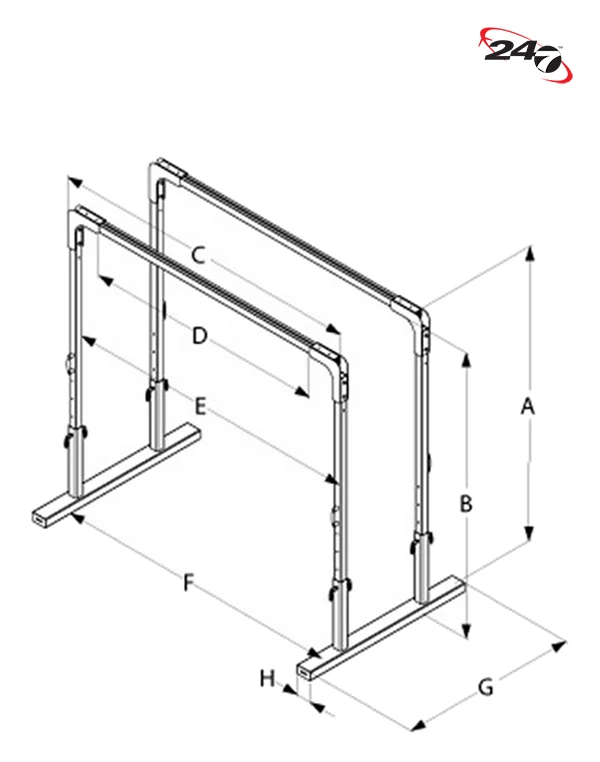

Dimensions

A Height, total: 200-244 cm / 79-96″
C Width, total: 200-500 cm / 79-197″
E Width, between uprights: 209-509 cm / 82-200″
F Distance between supporting feet: 204-504 cm / 80-198″
G Length, supporting foot: 120 cm / 47″
H Width, supporting foot: 13 cm / 5″
B Lifting range, height: 192-227 cm / 76-89″
D Lifting area, width: 223-523 cm / 88-206
